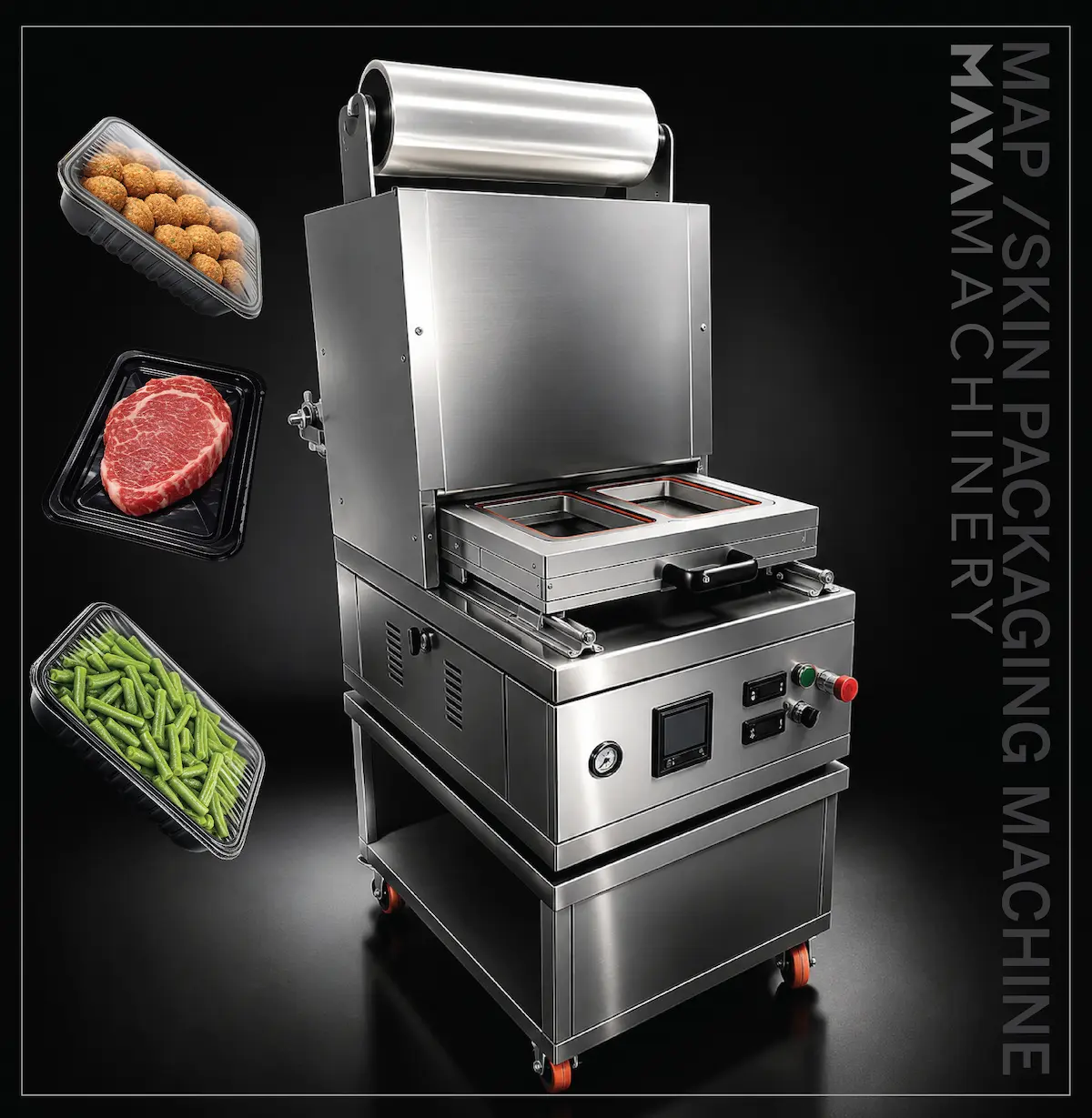

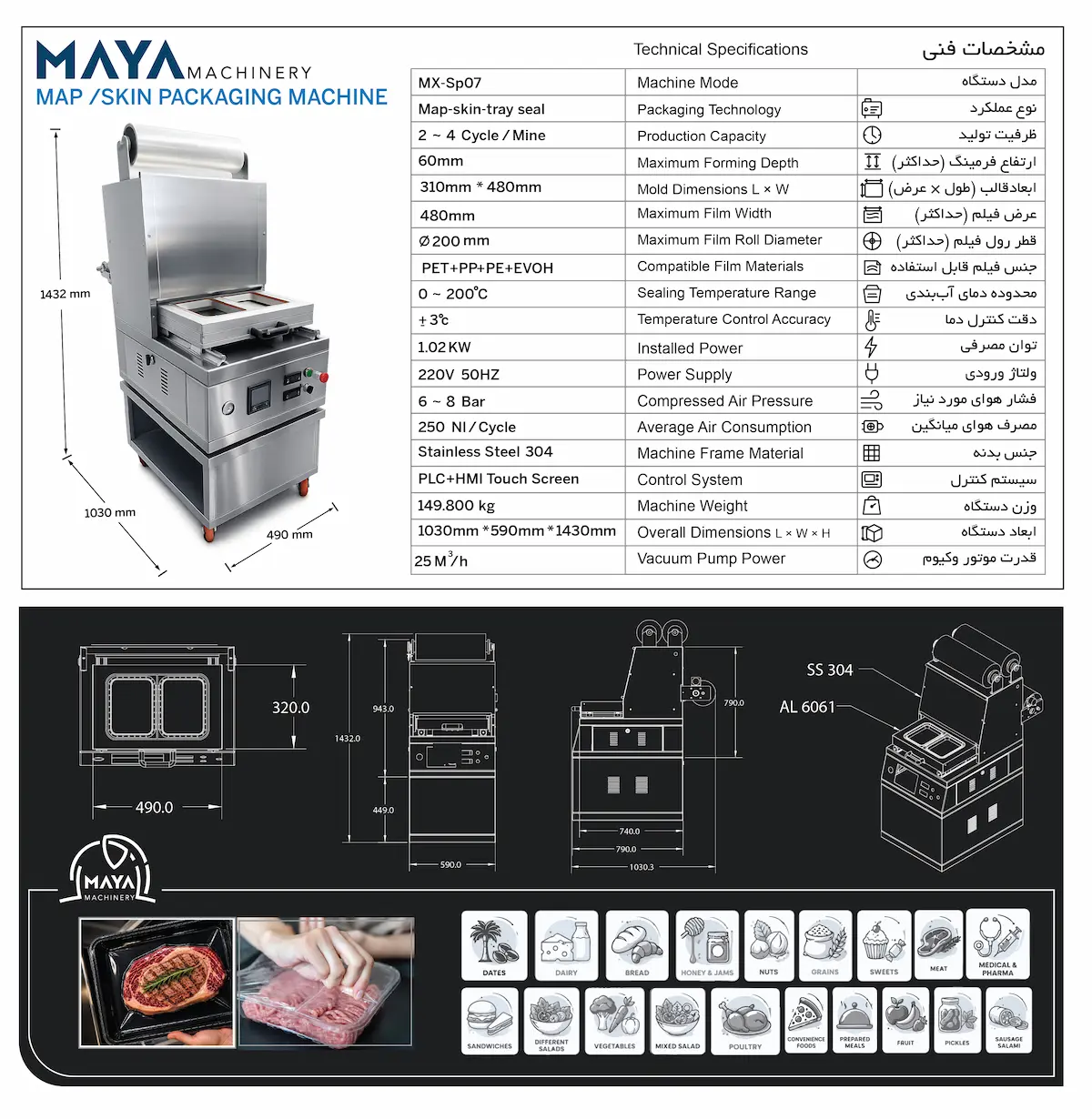

MAP / Vacuum Skin Packing Machine MX-SP07
Additional information
| Packaging Technology |
MAP / SKIN / TRAY / SEAL |
|---|---|
| Production Capacity |
2 – 4 Cycle/Min |
| Maximum Forming Depth |
60mm |
| Mold Dimensions L * W |
310mm * 480mm |
| Maximum Film Width |
480mm |
| Maximum Film Roll Diameter |
200mm |
| Compatible Film Materials |
PET + PP + PE + EVOH |
| Sealing Temperature Range |
0 ~ 200°C |
| Temperature Control Accuracy |
±3°C |
| Installed Power |
1.02KW |
| Power Supply |
220V 50HZ |
| Compressed Air Pressure |
6 ~ 8 Bar |
| Average Air Consumption |
250 NL/Cycle |
| Machine Frame Material |
Stainless Steel 304 |
| Control System |
PLC + HMI Touch Screen |
